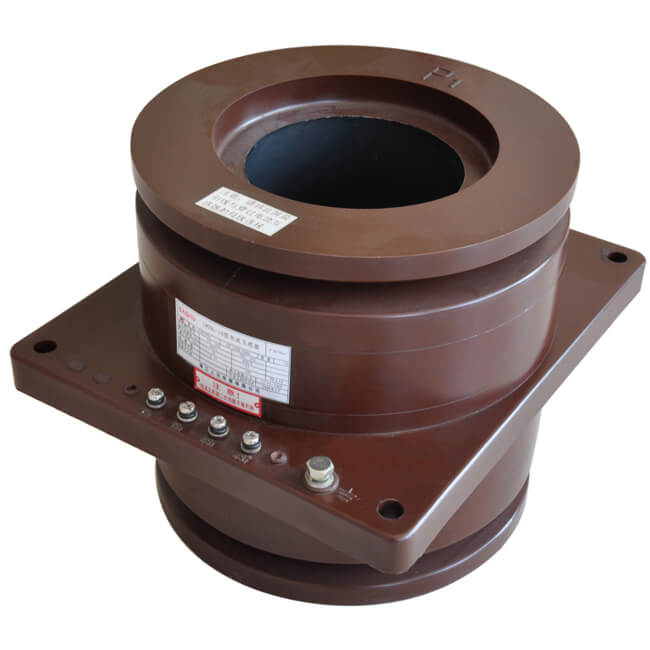

LMZB-11 epoxy resin busbar window current transforme
General
This indoor epxoy resin burbar window type instrument transformer used in 10kV, 11kV power system, for measuring and protection. LMZB-11 epoxy resin busbar window current transformer LMZB-11 epoxy resin busbar window current transformer
It have been used in cubicle switchgear or in bay-installed switching stations.
The current transformer made from high temperature indoor epoxy resin, amorphous alloy core for metering and high quality CRGO core for protection, primary and secondary use pure electrolytic copper, both winding and core have shielding processing.
Standards
All SAGHU Electric instrument transformers are in conformity with IEC standards, and recommendations IEC 60044-1. Transformers in conformity with specific country standards can also be supplied. (IEEE C57.13, NBR6855, NBR6856…).
LMZB-11 epoxy resin busbar window current transformer
